8.13.2.1 IfcBoxAlignment

8.13.2.1.1 Semantic definition

The box alignment specifies the alignment of the text box relative to its position. The following string values shall be used:

top-left
top-middle
top-right
middle-left
center
middle-right
bottom-left
bottom-middle
bottom-right

Figure A illustrates alignment values. Figure B illustrates use of alignment values together with the placement and planar extent.

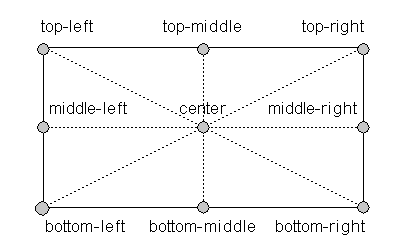

9 alignment values — Figure A — Box alignment values

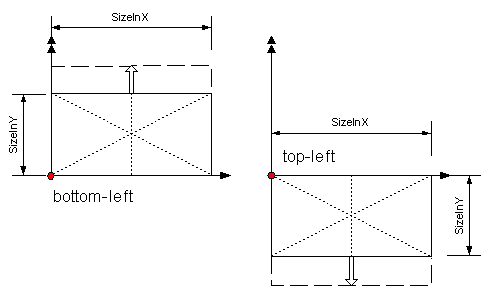

use with planar extent — Figure B — Box alignment examples

{ .change-ifc2x3}

8.13.2.1.2 Formal Propositions

WR1	SELF IN ['top-left', 'top-middle', 'top-right', 'middle-left', 'center', 'middle-right', 'bottom-left', 'bottom-middle', 'bottom-right']

Table C

8.13.2.1.3 Formal representation

TYPE IfcBoxAlignment = IfcLabel;
WHERE
WR1 : SELF IN ['top-left', 'top-middle', 'top-right', 'middle-left', 'center', 'middle-right', 'bottom-left', 'bottom-middle', 'bottom-right'];
END_TYPE;

8.13.2.1.4 References

IfcTextLiteralWithExtent
