7.1.2.1 IfcDoorPanelOperationEnum

7.1.2.1.1 Semantic definition

This enumeration defines the basic ways how individual door panels operate as shown in Figure 1.

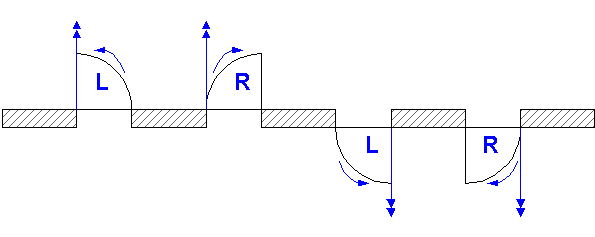

The opening direction of the door panels is given by the local placement of the IfcDoor. The positive y-axis determines the direction as shown in Figure A.

panel direction
Figure A — Door panel operations

{ .change-ifc2x4}

7.1.2.1.2 Type values

Type Description
DOUBLE_ACTING
Double acting:
Figure C
FIXEDPANEL
Fixed panel:
Figure D
FOLDING
Folding:
Figure E
REVOLVING
Revolving:
Figure F
ROLLINGUP
Rolling up:
Figure G
SLIDING
Sliding:
Figure H
SWINGING
Swinging:
Figure I
USERDEFINED

User defined.
NOTDEFINED

Not defined.
Table B

7.1.2.1.3 Formal representation

TYPE IfcDoorPanelOperationEnum = ENUMERATION OF
(DOUBLE_ACTING
,FIXEDPANEL
,FOLDING
,REVOLVING
,ROLLINGUP
,SLIDING
,SWINGING
,USERDEFINED
,NOTDEFINED);
END_TYPE;

7.1.2.1.4 References

Edit on Github

5 contributor(s): ArturTomczakbSI-BotDion Moultluz pazLéon van Berlo
Last change: Improve definition split (#876) * bring back headers headers were previously removed by mistake, now bringing them back * add new lines and rename the tag add the word 'short' in it * unify newlines make exactly one newline before and two after the tag * resolving typos Because bringing back headers required to go back in time to previous version, I'm now re-resolving the issues: #861, #860, #856 by ArturTomczak on 2024-07-16T16:07:28+02:00

Is this page difficult to understand? Let us know!

7.1.2.1.5 Changelog

7.1.2.1.5.1 IFC4

  • item, FIXEDPANEL
