8.7.3.11 IfcGridAxis

RV ⓘ

AbV ⓘ

8.7.3.11.1 Semantic definition

An individual axis, IfcGridAxis, is defined in the context of a design grid. The axis definition is based on a curve of dimensionality 2. The grid axis is positioned within the XY plane of the position coordinate system defined by the IfcGrid.

The standard geometric representation of IfcGridAxis is defined using a 2D curve entity. Grid axes are normally defined by an offset to another axis. The IfcOffsetCurve2D supports this concept. Each grid axis has a sense given by the parameterization of the curve. The attribute SameSense is an indicator of whether or not the sense of the grid axis agrees with, or opposes, that of the underlying curve.

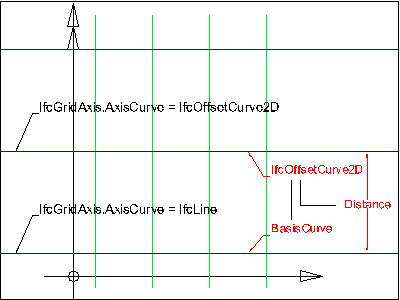

As shown in Figure A, the grid axis is defined as a 2D curve within the xy plane of the position coordinate system. Any curve can be used to define a grid axis, most common is the use of IfcLine for linear grids and IfcCircle for radial grids.

Most grids are defined by a pair of axis lists, each defined by a base grid axis and axes given by an offset to the base axis. The use of IfcOffsetCurve2D as underlying AxisCurve supports this concept.

8.7.3.11.2 Entity inheritance

- IfcGridAxis

8.7.3.11.3 Attributes

#	Attribute	Type	Description
IfcGridAxis (7)
1	AxisTag	OPTIONAL IfcLabel	The tag or name for this grid axis.
2	AxisCurve	IfcCurve	Underlying curve which provides the geometry for this grid axis.
3	SameSense	IfcBoolean	Defines whether the original sense of curve is used or whether it is reversed in the context of the grid axis.
	HasIntersections	SET [0:?] OF IfcVirtualGridIntersection FOR IntersectingAxes	The reference to a set of <IfcVirtualGridIntersection's, that connect other grid axes to this grid axis. IFC2x3-CHANGE New inverse attribute.
	PartOfU	SET [0:1] OF IfcGrid FOR UAxes	If provided, the IfcGridAxis is part of the UAxes of IfcGrid. IFC2x3-CHANGE New inverse attribute.
	PartOfV	SET [0:1] OF IfcGrid FOR VAxes	If provided, the IfcGridAxis is part of the VAxes of IfcGrid. IFC2x3-CHANGE New inverse attribute.
	PartOfW	SET [0:1] OF IfcGrid FOR WAxes	If provided, the IfcGridAxis is part of the WAxes of IfcGrid. IFC2x3-CHANGE New inverse attribute.

Table B

8.7.3.11.4 Formal propositions

Name	Description
WR1	The dimensionality of the grid axis is 2.
`AxisCurve.Dim = 2`
WR2	The IfcGridAxis needs to be used by exactly one of the three attributes of IfcGrid: * UAxes * VAxes * WAxes i.e. it can only refer to a single instance of IfcGrid in one of the three list of axes.
`(SIZEOF(PartOfU) = 1) XOR (SIZEOF(PartOfV) = 1) XOR (SIZEOF(PartOfW) = 1)`

Table C

8.7.3.11.5 Formal representation

ENTITY IfcGridAxis;
AxisTag : OPTIONAL IfcLabel;
AxisCurve : IfcCurve;
SameSense : IfcBoolean;
INVERSE
HasIntersections : SET [0:?] OF IfcVirtualGridIntersection FOR IntersectingAxes;
PartOfU : SET [0:1] OF IfcGrid FOR UAxes;
PartOfV : SET [0:1] OF IfcGrid FOR VAxes;
PartOfW : SET [0:1] OF IfcGrid FOR WAxes;
WHERE
WR1 : AxisCurve.Dim = 2;
WR2 : (SIZEOF(PartOfU) = 1) XOR (SIZEOF(PartOfV) = 1) XOR (SIZEOF(PartOfW) = 1);
END_ENTITY;
